| Τόπος καταγωγής | Κίνα |
|---|---|
| Μάρκα | CHIC |
| Πιστοποίηση | CE ISO |
| Ποσότητα παραγγελίας min | 1 κομμάτι |
| Συσκευασία λεπτομέρειες | Το εσωτερικό συσκευασίας είναι πλαστικές ταινίες και το εξωτερικό είναι ξύλινη περίπτωση υποκαπνισμο |
| Χρόνος παράδοσης | 30 εργάσιμες ημέρες |
| Όροι πληρωμής | L/C, T/T, Western Union |
| Δυνατότητα προσφοράς | 20 PC το /month |
Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.
xΛεπτομέρειες
| Όνομα | Προφυλακτικών τσαντών σακουλιών κονσερβοποιώντας μηχανή συσκευασίας κιβωτίων αυτόματη κονσερβοποιώντ | Οδηγημένος τύπος | Ηλεκτρικός |
|---|---|---|---|
| Αυτόματος βαθμός | Πλήρης αυτόματος | Τάση | φάση 380V 50Hz 3 |
| Ικανότητα | 30-125 χαρτοκιβώτια/λ. | Διάσταση | 2700mm*1140mm*1800mm |
| Επισημαίνω | Αυτόματη κονσερβοποιώντας μηχανή μασκών,Αυτόματη κονσερβοποιώντας μηχανή προφυλακτικών,Αυτόματη μηχανή πλήρωσης πεδίων μασκών προφυλακτικών |
||
Περιγραφή προϊόντων

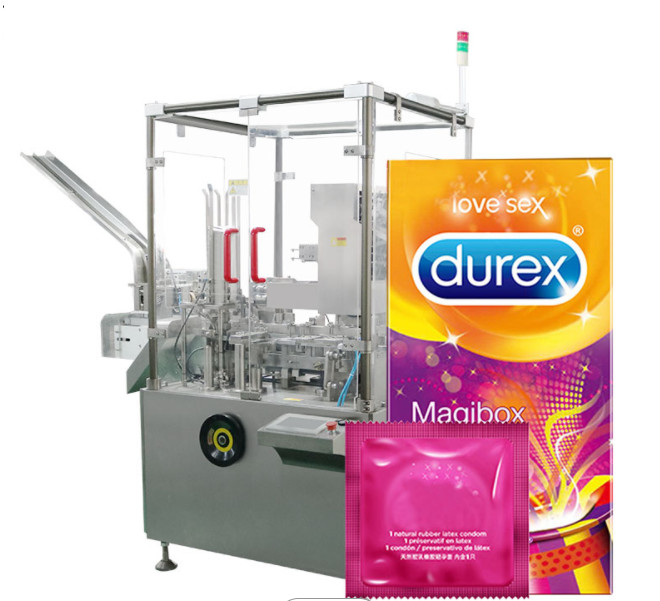

Condom Bag sachet Cartoning Box Automatic Cartoning Packaging Machine
Application:
1. Blister cartoning machine
2. Tea bag cartoning machine
3. Automatic Bottle Cartoning Machine
4. Mask cartoning machine
5. Electronic cigarette cartoning machine
GMP Standard CHIC-ZH-120L Automatic vertical cartoning packing machine can packed various products such as aluminum plastic plate and aluminum aluminum plate, electronic cigarette,facial cleanser,ointment,Sealed pouch various bottled products.120L vertical cartoning packing machine can be connected with the blister packing machine,three dimensional transparent film wrapping machine and strapping machine to form a production line.
The automatic cartoning packing machine has strong compatibility and can pack products of various specifications on one machine.High degree of automation,from feeding,suction carton,forming,on line transmission,folding of leaflet(1-4 folds),material testing,products and leaflet pushing into carton,printing batch number,with top fold flaps,carton sealing(mechanical sealing or hot melt glue),lack of material detection and rejection all automatically completed.
Specifications :
| After-sale Provide | Engineers available to service machinery overseas | |||
| Cartoning Machine Models | 120L | 120W | 260W | 450W |
| Power | 1.1 KW | 0.75 Kw | 5 Kw | 4.5 Kw |
| Capacity | 125 Cartons/Min | 125 Cartons/Min | 260 Cartons/Min | 450 Cartons/Min |
| Dimension |
2150*1140*1800 mm |
3100*1100*1550 mm | 6800*1600*1860 mm | 4800*1800*2000 mm |
| Weight | 1500kg | 1600 Kg | 3400 Kg | 5500 Kg |
Feature:
-1.This equipment is specially designed for small output and multi-size carton packaging.
-2.Small footprint, economical and practical and suitable for a variety of boxes.
-3.Save labor cost, 40 boxes per person per minute, greatly improving production efficiency.
-4.The whole equipment is made of stainless steel 304.
-5.The equipment adopts advanced PLC control with touch screen operation function, and the production speed can be adjusted at will without adjusting any other parameters.
-6.Advanced electrical control system: the imported encoder is used to control the electrical centralized, which is convenient to use and simple to operate.
-7.The first carton feeding system in China, which realizes the function of adding new carton without stopping the machine.
-8.This equipment can be connected with the front-end liquid filling machine, aluminum-plastic packaging machine, pillow packaging machine and other packaging machines, and realize fully automatic work. The back end can be connected to the labeling machine, strapping machine, heat shrinking machine and three-dimensional packaging machine.
-9.Available optional functions: print production date, automatically add instructions, hot melt adhesive sealing device, automatic feeding device, etc.
Machine accessory list:
| Item parts | Specification | Qty. | Manufacturer |
| Servo motor/driver | 400W MHMD042G1U/400W MBDHT2510E | 1/1 | Panasonic |
| Main motor | R17DT80N4 0.75KW/220V/380V | 1 | Germany SEW |
| Frequency converter | FC-051P1K5S2E20H | 1 | Danfoss |
| Relay | MY2NJ/24VDC | 5 | Japan Omron |
| Touch screen | GC—4408W | 1 | Proface |
| PLC | Smart ST40 | 1 | Germany Siemens |
FAQ
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product?
2. Production size or bag/sachet/pouch/carton size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag/carton type.
Q2: Are you a real factory/manufacturer?
Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel.
You don’t have time? We can use live video and you can visit us on line.
Q3: Is engineer available to serve oversea?
Yes, we can send engineers to your factory but all the fee will be on buyers.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4. How can we make sure about the machine quality after placing the order?
Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you satisfy. We will setting all the parameters well.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q5. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use trade assurance service, protect your money, machine quality and delivery are guarantied
Q6. Can you explain me the whole transaction progress ?
1. Sign the Contact/order on we have trade assurance.
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6. Arrange the balance payment before shipment.
Q7: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
